BILGENPUMPE 1038 & BYPASS
COMPACT BILGE PUMP WITH INTEGRATED HANDLE & BYPASS
COMPACT BILGE PUMP WITH INTEGRATED HANDLE & BYPASS

COMPACT BILGE PUMP WITH INTEGRATED HANDLE & BYPASS

Shipping calculated at checkout.

DESCRIPTION:

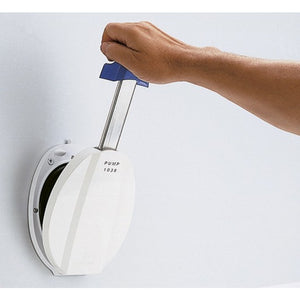

The Plastimo bilge pumps have been developed in collaboration with boat owners and designed by the Plastimo R&D team. This bilge pump has an extendable handle for efficient and more comfortable pumping. A version with by-pass connection allows both a hand pump and an electric centrifugal pump to be connected to a single water circuit. Please note that this pump is not suitable for diaphragm or flexible impeller pumps. With an output of 1 litre per cycle and a capacity of 40.5 litres per minute according to ISO 15083 standard (at 45 strokes per minute and a pressure difference of 10 kPA), this pump is powerful and reliable. With a weight of 1.050 kg and a hose diameter of Ø 38 mm (1 1/2 inches), it is easy to handle. The pump is supplied with 2 angle connections with valve (inlet & outlet) and is compact in design.

TECHNICAL FEATURES:

  • Material: Shock and hydrocarbon resistant material
  • Output: 1 litre per cycle
  • Capacity: 40.5 liters per minute according to ISO 15083 standard
  • Weight: 1,050 kg
  • Hose diameter: Ø 38 mm (1 1/2 inch)
  • Equipped with: 2 angle connections with valve (inlet & outlet)
  • Compact design, suitable for limited space and difficult access
  • Outlets can be rotated 360° for optimal adaptation to the pump position in relation to the strainer and the breakthrough screw connection
  • Maximum safety: Integrated handle for immediate readiness for use and drainage of water into the cockpit in the event of a leak to enable immediate action
  • Easy installation and maintenance: Installation possible from the cockpit, quick removal of the diaphragm

LOGISTICS DATA:

  • Shipping details will be calculated at checkout
  • Item weight (Kg): 1.42
  • Item dimensions (L x W x H in cm): 24.8 x 21 x 21.1
  • Item volume (Cm3): 10,988.88
  • Dangerous article: No
  • Bulky item: No
  • Sales unit: piece

HINTS:

  • Please note that this pump is not suitable for use with diaphragm or flexible impeller pumps.
  • The pump is equipped with an extendable handle for convenient operation.
  • In the event of a leak, the water is drained into the cockpit to enable immediate action.
  • Installation and maintenance of the pump are simple and can be carried out conveniently from the cockpit.
  • The compact design of the pump allows installation even in limited
