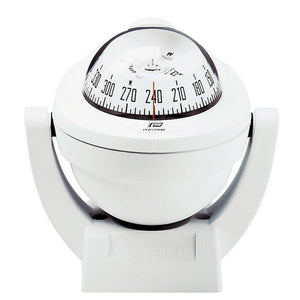

COMPASS OFFSHORE 75 WITH LIGHTING FOR MOTOR BOATS FROM 5-8 METERS
DESCRIPTION: The Offshore 75 compass is a high-quality compass specially designed for motorboats from 5 to 8 meters. With its white housing and white rose, it blends elegantly into the instrument panel. It has integrated lighting that allows clear readability even in the dark. The compass is suitable for both vertical mounting and angled mounting from 20° to 90°.
The design of the Offshore 75 is based on extensive know-how and industrial technology in compass manufacturing. The 'Vibration Absorber' system ensures exceptional stability in all navigation conditions. The conical rose with 5° graduations and an apparent diameter of 70 mm enables precise course reading. The course is repeated every 30°.
The compass can be installed horizontally, vertically or at an angle. It is equipped with a mini base that is mounted horizontally on a clip disc (supplied). This makes it easy to attach and remove the compass. Alternatively, it can be attached horizontally or at an angle using a bracket. If required, compass compensation is available as an accessory (order number: 6-A-17673).
The Offshore 75 compass is equipped with a standard illumination that includes a 12 Vdc bulb. The clip disk and the screw set for mounting are included in the delivery. The compass meets the requirements of the ISO 613 standard.
TECHNICAL DATA:
- Boat type: Motor boats from 5-8 meters
- Housing color: White
- Rose: White conical rose with 5° graduation
- Apparent rose diameter: 70 mm
- Course repetition: Every 30°
- Installation: Horizontal, vertical or inclined
- Lighting: Standard with 1 bulb 12 Vcc
- Resistance to vibrations: 'Vibration Absorber' system
- Control lines: 1 control line
- Compensation: Accessories (Order number: 6-A-17673)
- Approval: ISO 613
Note: Exact logistics details may vary depending on packaging and shipping options.
