ADVANSEA S4 WIND-A ANALOG DISPLAY
DESCRIPTION:

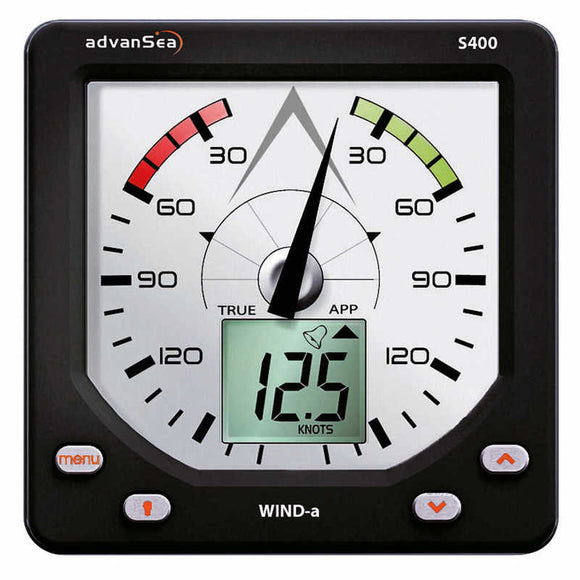

The ADVANSEA S4 WIND-A Analog Display is a pure display unit without masthead and cables. It displays the data on 2 user-definable lines, with the upper line being 32 mm high and the lower line 22 mm high. The device has a proprietary bus interface and a NMEA0183 input/output for connectivity with other devices.
The wind meter displays the wind speed from 0 to 199 knots and the wind direction in a 360° range. It also provides a display of the trend of wind changes. The device can measure and display both the true wind and the apparent wind. The wind direction is displayed with a resolution of 1°.
Additional features of the ADVANSEA S4 WIND-A Analog Display include VMG speed display, high wind alarm and low battery alarm. It has a simulation mode and comes with a weatherproof cover. The device has an operating voltage range of 10V to 16.5V and a current consumption of less than 150mA (including backlight).
The wind gauge has a robust design and is intended for flush mounting. It has a hole diameter of 48 mm and can be fixed with a rear locking nut. The screen is a monochrome LCD with TN (Twisted Nematic) technology and has illuminated retro buttons. The screen is treated with an anti-fog coating and has an IP66 waterproof rating on the front.
The device supports various units such as degrees, m/s, Beaufort, knots, km/h, miles/h and V. It can also issue alarm signals for strong winds and low battery voltage.
TECHNICAL FEATURES:
- Dimensions: L. 112 x W. 112 mm
- Model: Display only Wind-A Analog
LOGISTICS DATA:
- Item weight: 0.64 kg
- Item length: 12.1 cm
- Item width: 15.1 cm
- Item height: 23.1 cm
- Item volume: 4220.6 cm3
- Dangerous goods: No
- Bulky goods: No
- Sales unit: piece
