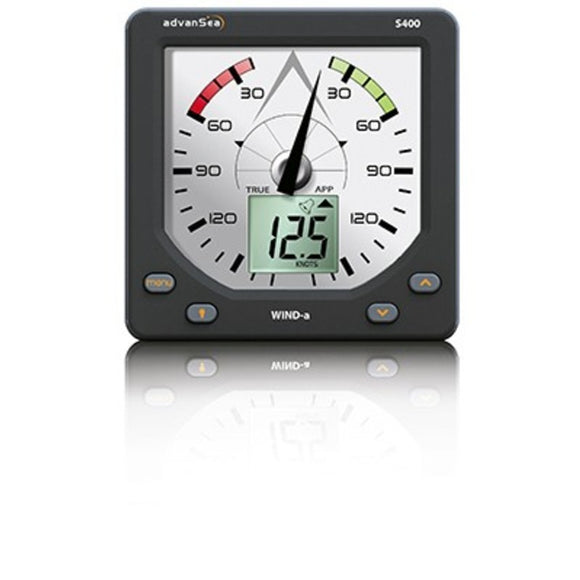

ADVANSEA S400 WIND-A ANALOG KOMPLETT

ADVANSEA S4 WIND-A ANALOG INCL. WIND METER

  • €613,00
    Unit price per


DESCRIPTION:

The ADVANSEA S4 WIND-A Analog Complete is a complete wind measuring instrument that comes with a mast head and a 25 m cable. It features a display with two configurable lines, with the upper line being 32 mm high and the lower line being 22 mm high. The device offers an Owner Bus interface and a NMEA0183 in/out for connectivity with other devices.

The wind meter displays the wind speed from 0 to 199 knots and the wind direction in a 360° range. It also provides an indicator for the trend of wind changes. The device can measure and display both true wind and apparent wind, with a resolution of 1° for the wind direction.

Additional features of the ADVANSEA S4 WIND-A Analog Complete include a strong wind alarm and a low battery alarm. It has a simulation mode and comes with a protective case. The device has an operating voltage range of 10V to 16.5V and a power consumption of less than 150mA (without sensor).

The wind meter has a robust design and is intended for installation. It has a hole diameter of 48 mm and can be fixed without screws. The screen is a monochrome LCD with TN (Twisted Nematic) technology and has illuminated retro buttons. The screen has an anti-fog coating and has an IP66 waterproof rating on the front.

The device supports various units such as degrees, m/sec, Beaufort, knots, km/h, miles/h and v. It can also issue alarm signals for strong wind and low battery voltage.

TECHNICAL FEATURES:

  • Dimensions: L. 112 x W. 112 mm
  • Model: Complete Wind-A Analog

LOGISTICS DATA:

  • Customs tariff number: 90141000
  • Item weight: 2.361 kg
  • Item length: 15,900 cm
  • Item depth: 26,800 cm
