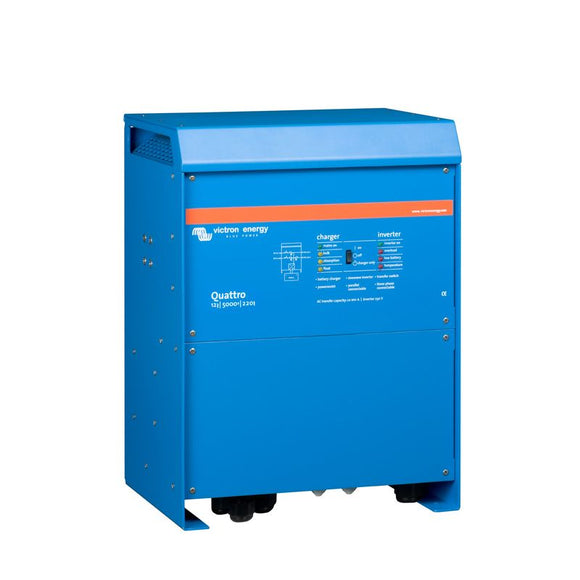

VICTRON QUATTRO 12/5000/220-100/100 230 V VE.BUS

  • €3.656,00
    Unit price per


Victron Quattro inverter/charger: 12V, 5kW - 230V. Two AC inputs with integrated switch:

The Quattro can be connected to two independent AC power sources, for example the public power grid and a generator or two generators.

The Quattro automatically connects to the active source. Two AC outputs: The main output has an uninterruptible function.

The Quattro takes over the supply of the connected consumers in the event of a power failure or if the shore power/generator is switched off.

This happens so quickly (less than 20 milliseconds) that computers and other electronic devices can continue to operate without interruption.

The second output is only active when alternating current is present at one of the Quattro's inputs.

Consumers that must not discharge the battery, such as a water heater, can be connected to this output. Specifications:

Size: H470 x W350 x D280mm,
Weight: 34Kg.
With battery temperature sensor. Remote: control and switching on/off (remote monitoring).
5 year warranty.

DATA SHEET: Datasheet Quattro-3kVA-15kVA-EN
